Solar PV Mounting Frame for High-rise Installations
Revolutionary Mounting Solution
PV-ezRack launches its latest series ‘Elevate’ with its flagship product, SolarBalcony, which is a pre-assembled mounting structure for Solar PV installations onto high-rise balconies. This innovative solution brings solar power to urban residential spaces, making renewable energy accessible for apartment dwellers and high-rise residents.

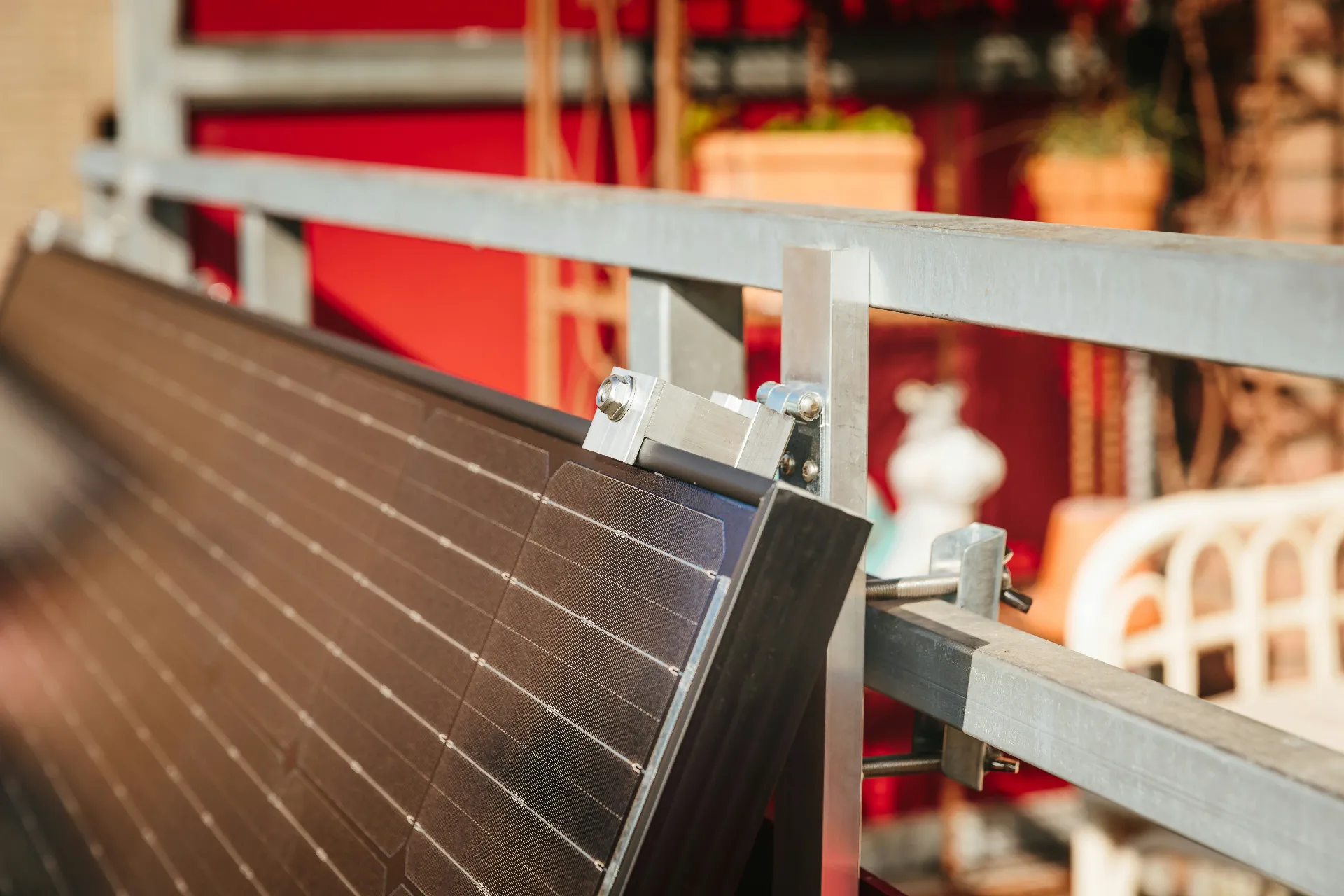

Simple Installation Process
Pre-assembled design allows for quick and easy balcony mounting
Pre-assembled Design
Completely pre-assembled, the SolarBalcony simply needs to be unfolded and secured to the balcony for installation. All these features result in a fast, easy and cost efficient installation, crucial for residential projects.
Premium Features

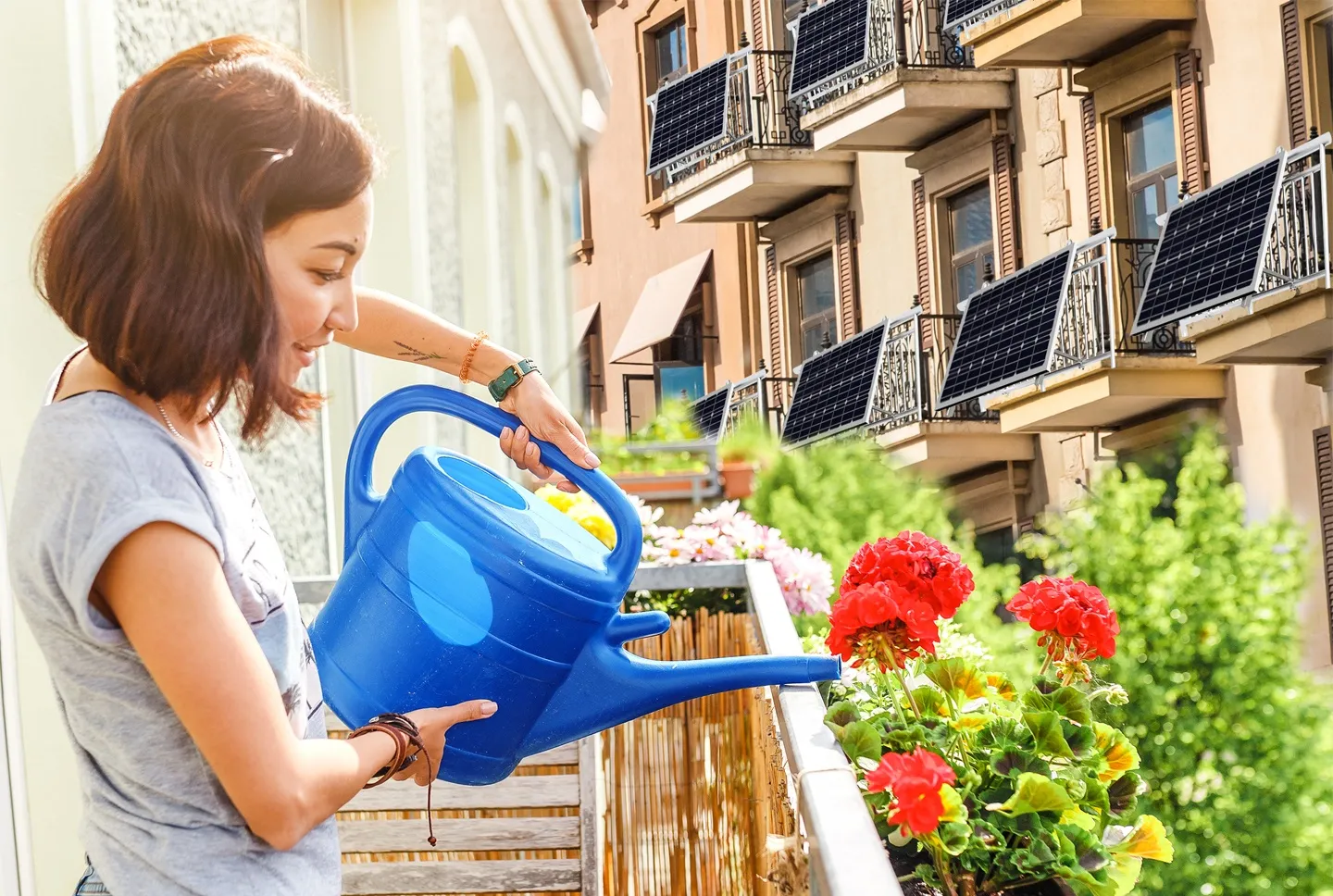

SolarBalcony seamlessly integrates into urban residential life, providing clean energy without compromising living space
Excellent Compatibility
Panel Flexibility
Standardized components are suitable for 60cell as well as for 72cell panels
Large Adjustment
Mounting frame can cover most commonly sized balconies with flexible adjustment range
Railing Compatible
Compatible with metal railings found on most residential balconies

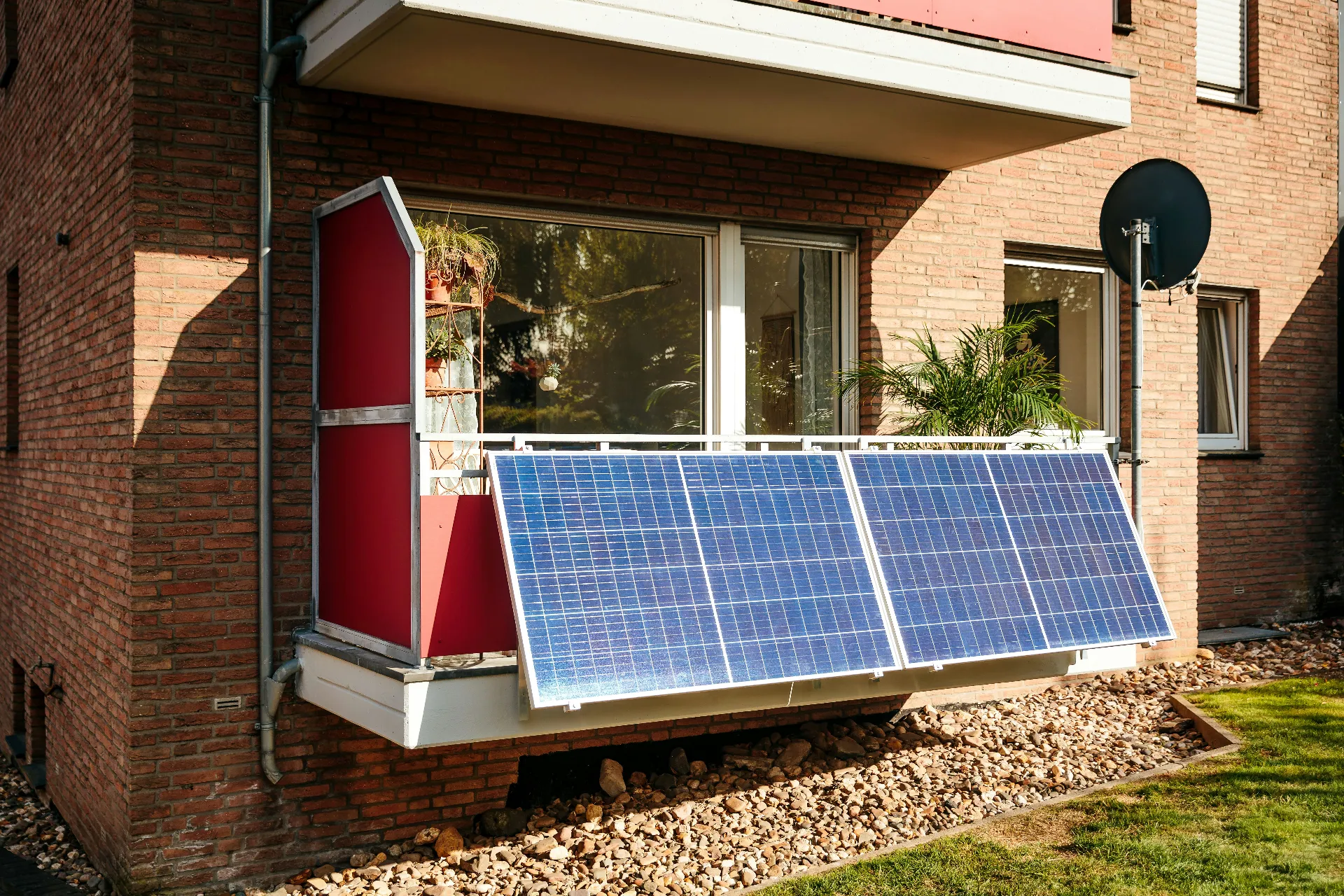

Architectural Integration
Seamlessly integrates with existing building structures
Built to Last
Engineered for durability and longevity with premium materials that withstand the harshest environmental conditions.
Mounting Options & Technical Details
Choose between adjustable triangle brackets for optimized solar tilt or vertical brackets for compact railing installations. Both options use aluminum alloy structures, support common balcony hook types, and can be customized for different PV module sizes.
Triangle Bracket
Adjustable tilt balcony PV mounting
- Panel fit: designed around 1724 × 1134 × 30/35 mm modules, with customization available for other sizes.
- Structure: aluminum alloy rails with supporting rails, short rails, balcony fixing sheets, and inverter fixing sheet.
- Hook options: U-shape hook or square hook for different balcony railing conditions.
- Tilt range: 20°, 25°, 30°, and 35° options to improve solar exposure where the balcony allows angled installation.
Vertical Bracket
Space-saving vertical balcony mounting
- Panel fit: suitable for 1724 × 1134 × 30/35 mm modules and customizable for different module sizes.
- Structure: aluminum alloy mounting rails, spacers, short rails, end clamps, fixing blocks, and balcony fixing sheets.
- Hook options: U-shape hook or square hook for common metal balcony railings.
- Installation angle: 0° vertical layout for compact balconies where projection or tilt must be minimized.
Triangle Bracket Product Gallery
Vertical Bracket Product Gallery
Triangle Bracket Parameter Images
Vertical Bracket Parameter Images
Key Benefits
Easy Installation
Completely pre-assembled, the SolarBalcony simply needs to be unfolded and secured to the balcony for installation. All these features result in a fast, easy and cost efficient installation, crucial for residential projects.
Durable and Low Corrosion
SolarBalcony contains only 6005-T5 Aluminium alloy and 304 stainless steel, in different anodised thicknesses, which makes it suitable for even the toughest of environments, such as corrosive sites close to the coast.
Excellent Compatibility
Standardized components are suitable for 60cell as well as for 72cell panels. Thanks to large adjustment, the mounting frame can cover most commonly sized balconies. And it is compatible with metal railings.

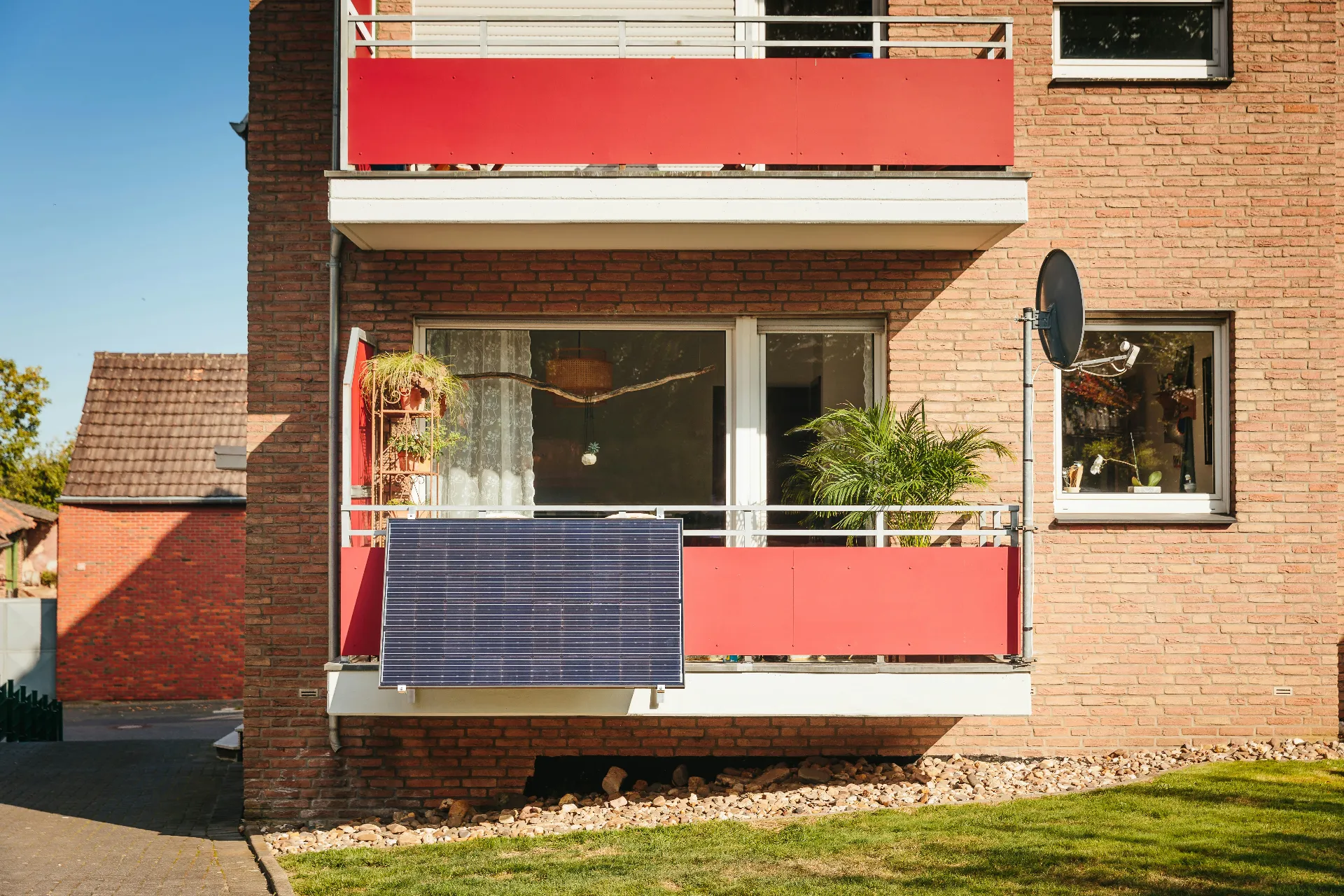

SolarBalcony systems installed across multiple balconies, transforming entire buildings into renewable energy generators
Frequently Asked Questions
What is a solar balcony mounting system used for?
A solar balcony mounting system is used to install PV modules on apartment balconies, railings, terraces, and similar urban residential spaces where roof access is limited.
Is this solution suitable for high-rise residential projects?
Yes. It is designed for residential and multi-family applications where secure mounting, space efficiency, and long-term outdoor durability are important.
Can the balcony system handle coastal or humid environments?
Yes. The structure is designed for durable outdoor use and can be matched with corrosion-resistant materials for demanding environments.
Can Luminvolt customize the mounting solution for different balcony types?
Yes. Luminvolt can adjust the design according to railing type, panel size, installation angle, and project-specific building constraints.
