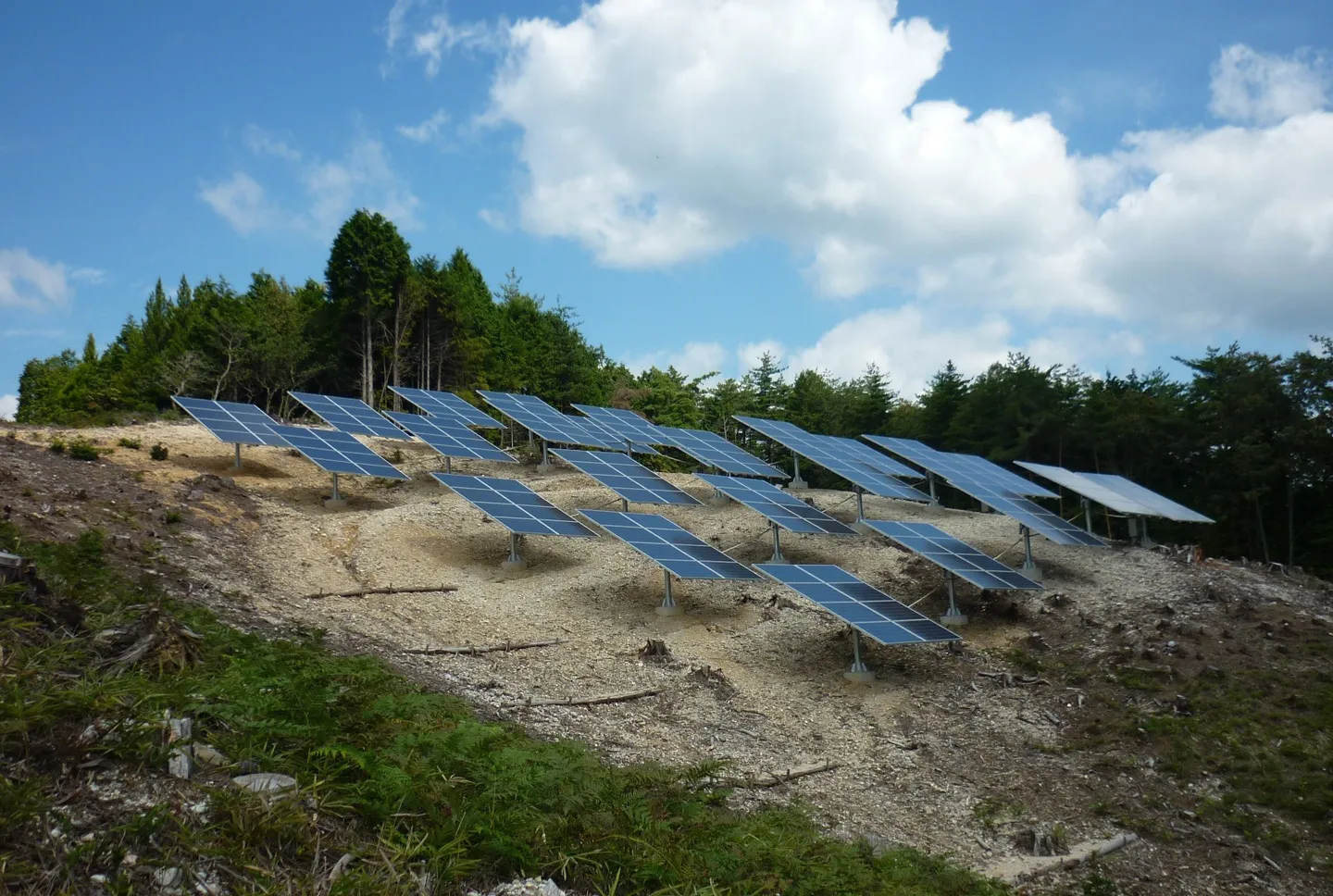

PostMount – A Series
Robust Pole Mount System with Adjustable Angle (10°- 60°) for 1 to 8 Panels. Engineered for off-grid excellence, quick installation, and extreme weather durability.
PostMount 1-A to 4-A
Perfect choice for versatile solar installations, from single panels up to four panels per post.
PostMount 6-A and 8-A
Heavy-duty designs to mount six or eight panels per post for larger installations requiring robust performance.
Technical Specifications
Designed to meet international standards for structural safety.
| Installation Site | Open ground (Concrete foundation or Ramming) |
|---|---|
| Tilt Angle | Adjustable between 10° and 60° |
| Max Wind Speed | Up to 60 m/s (Customizable upon request) |
| Max Snow Load | Up to 1.4 KN/m² |
| Main Material | AL6005-T5 Aluminum & Hot-dip Galvanized Steel |
| Fasteners | SUS304 Stainless Steel |
| Warranty | 12 Years product warranty |
Need Installation Manuals?
Download detailed component lists, torque specifications, and foundation dimension guidelines.
Request Full Datasheet
Reduce Installation Time
Patented Z-Module technology allows components to be inserted into the rail at any given point. Secured with just three hand grips.
Changing the tilt angle seasonally (10°- 60°) merely requires a single pair of spanners. No complex machinery needed on-site.
Ready to Deploy PostMount A-Series?
Contact our engineering team today for a free project consultation, custom BOM (Bill of Materials), and competitive B2B pricing.
Contact Engineering TeamAdjustable Tilt Pole Mount FAQs
What is an adjustable tilt pole mount system?
It is a solar mounting solution that allows installers to change the panel tilt angle to improve seasonal solar exposure and support flexible installation scenarios.
Who typically uses adjustable tilt pole mounts?
They are commonly used for residential, agricultural, telecom, and remote off-grid projects where tilt flexibility and compact installation are important.
How many panels can this type of system support?
The supported panel count depends on the selected model, module dimensions, and engineering requirements, and Luminvolt can recommend the right configuration.
Can the tilt angle be adjusted after installation?
Yes. The system is designed so the tilt can be adjusted to match seasonal sunlight conditions and project energy goals.
